| Características | Model, MPE-C501-AFCAG
ATX Version, ATX 12V V2.52
PFC, Active PFC
Input Voltage, 100-240V
Input Current, 15-7A
Input Frequency, 47-63Hz
Dimensions (L x W x H), 180 x 150 x 86 mm
Fan Size, 140mm
Fan Bearing, FDB
Fan Speed, 2200 RPM
Noise Level @ 20%, 0 dBA
Noise Level @ 50%, 15.8 dBA
Noise Level @ 100%, 30.1 dBA
Efficiency, ≥90% @ Typical Load
80 PLUS Rating, 80 PLUS Gold
ErP 2014 Lot 3, Yes
Operating Temperature, 0-50°C
Power Good Signal, 100 - 150 ms
Hold Up Time, >20ms at 100% Load
MTBF, >100,000 Hours
Protections, OVP, UVP, OPP, OTP, SCP, OCP
Regulatory, TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA

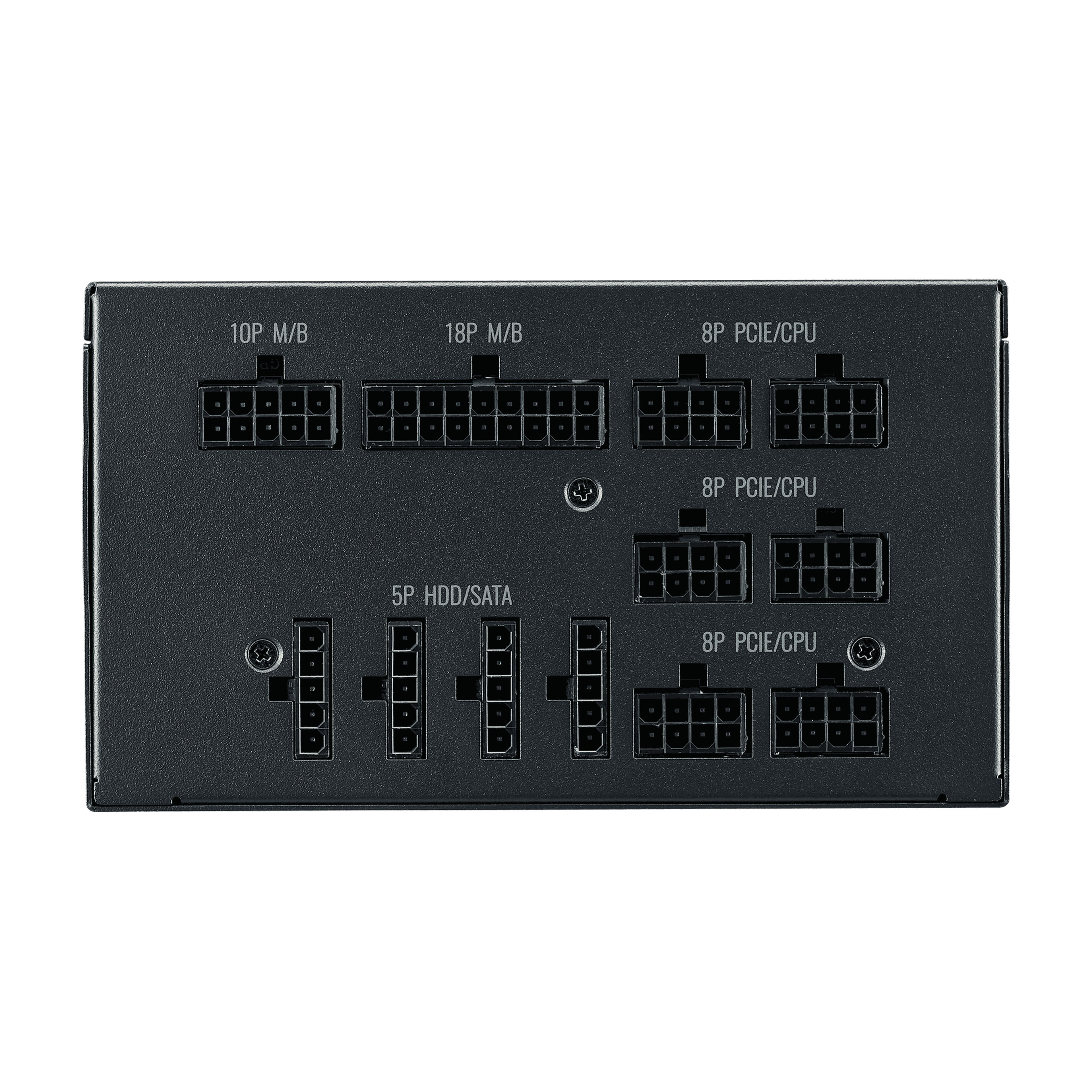

ATX 24 Pin Connectors, 1
EPS 4+4 Pin Connectors, 1
EPS 8 Pin Connector, 1
SATA Connectors, 12
Peripheral 4 Pin Connectors, 4
PCI-e 6+2 Pin Connectors, 8
Warranty, 10 Years
Series, MWE Gold Series
80 Plus, Gold
Modular, Full Modular
Wattage, Above 750W |
