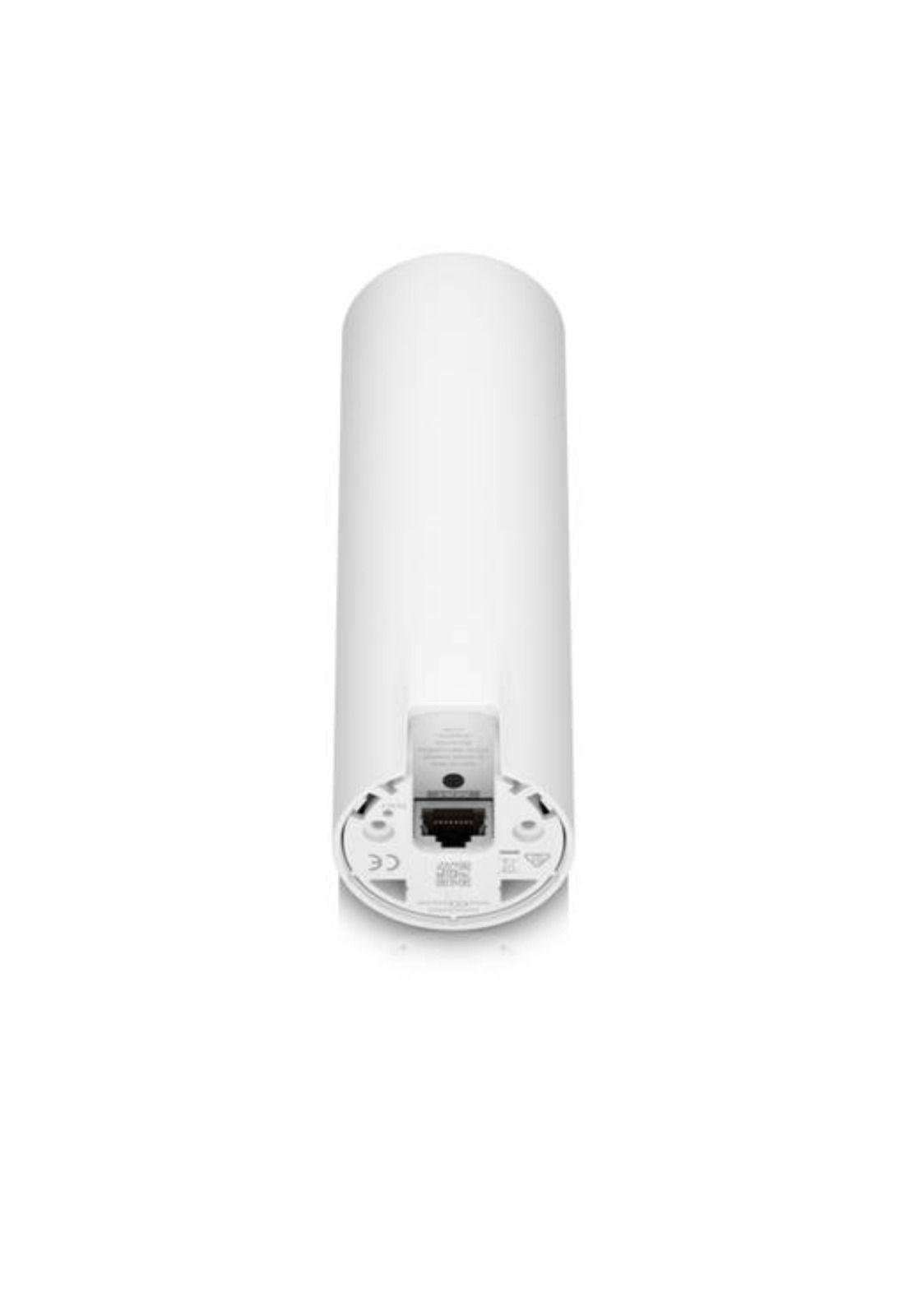

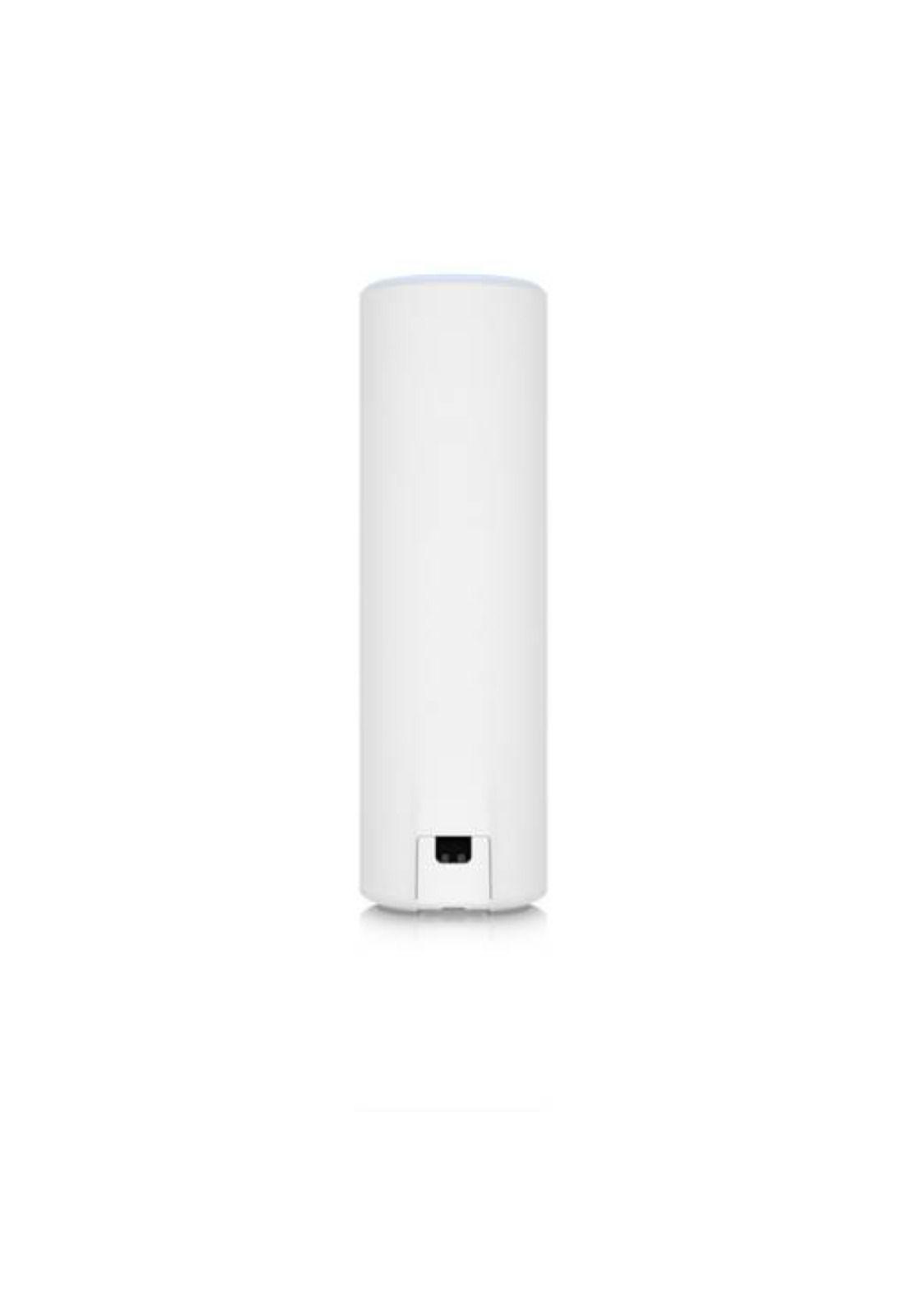

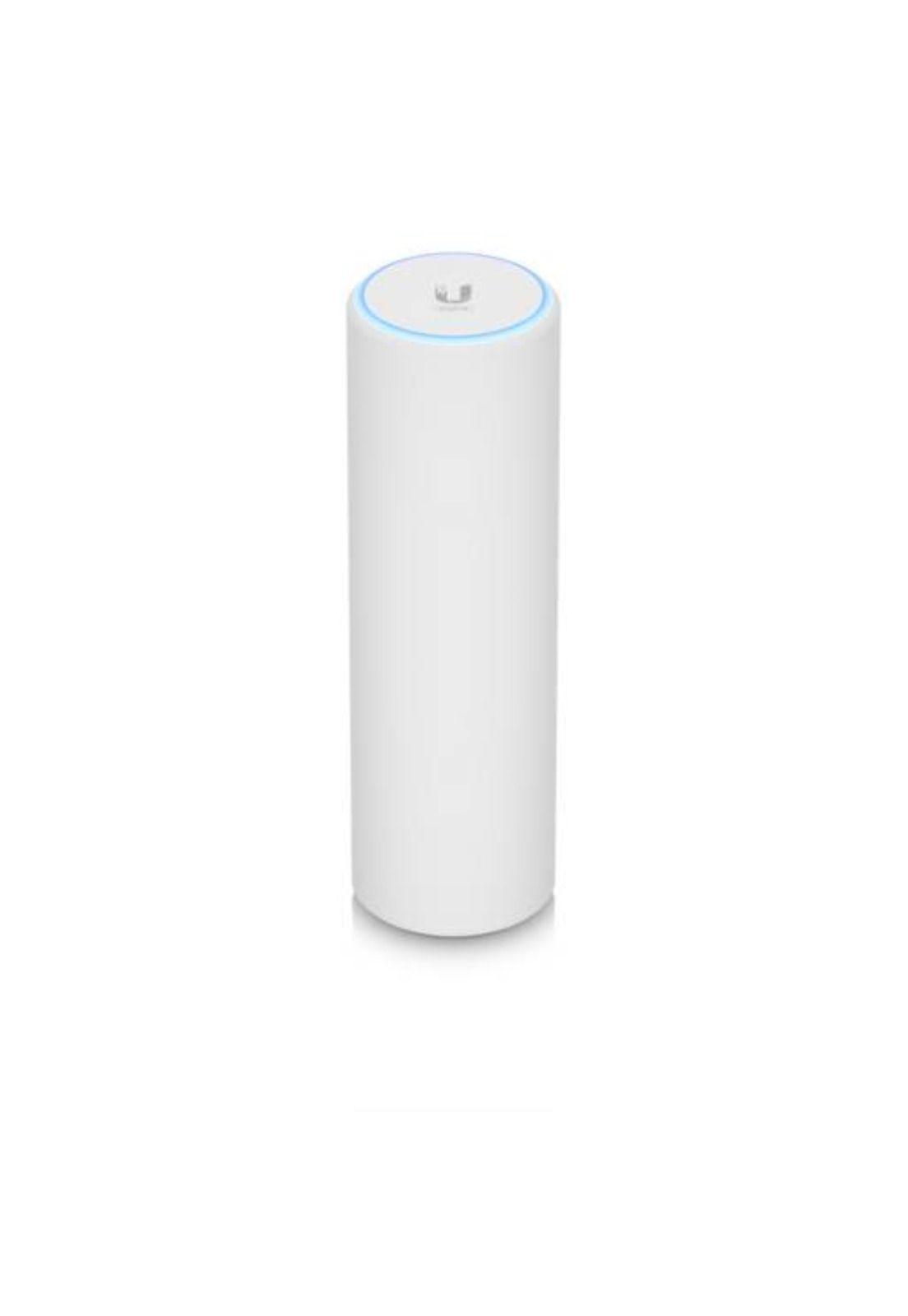

Punto de Acceso Ubiquiti U6-Mesh WiFi 6 PoE 13W
Dimensions ⌀48.5 x 159.5 mm
WiFi Standard; WiFi 6
Spatial Streams 6
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 250+
Uplink
GbE
Mounting Wall, Pole
(Mounts Included)
IPX5
Power Method
PoE
MIMO
5 GHz 4 x 4 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz 4.8 Gbps (BW160)
2.4 GHz 573.5 Mbps (BW40)
Antenna Gain
5 GHz 5 dBi
2.4 GHz 3 dBi
Max. TX Power
5 GHz 26 dBm
2.4 GHz 22 dBm
Max. BSSIDs 8 per Radio
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Max. Power Consumption 13W
Includes PoE Adapter
Supported Voltage Range 44–57V DC
Networking Interface (1) GbE RJ45 port
Weight 400 g
Management
Ethernet
Enclosure Material Polycarbonate, aluminum
Mount Material Polycarbonate
LEDs
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
UniFi Network Version 6.0.45 and later
